The FLEXmax FM60 and FM80 charge controllers are the latest innovation in Maximum Power Point Tracking (MPPT)
charge controllers from OutBack Power Systems. The innovative FLEXmax MPPT software algorithm in the FLEXmax
FM60 and the FLEXmax FM80 is both continuous and active, increasing your photovoltaic array power yield up to 30%
compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax
FM60 and FM80 charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in
ambient temperatures as high as 104°F (40°C).

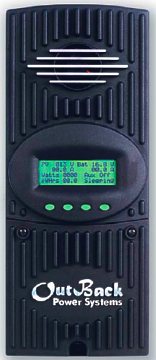

(Model # FM60-150VDC)

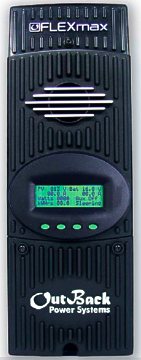

(Model # FM80-150VDC)
Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power,
including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to
recharge a lower voltage battery bank. You can wire your array up to 60 volts and feed a 12, 24, 36 or 48 volt battery bank.
A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at
the touch of a button. The integrated OutBack network communications allows the FLEXmax series Charge Controllers to
be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.
FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile
charge controller for your advanced power system.
NOTE: The Outback FM60 replaces the older Outback MX60.
