Outback Power Systems VFX2812M Inverter

Outback Logo

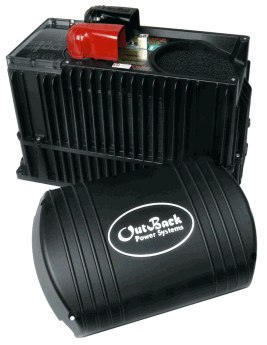

Outback Power Systems Inverter

OutBack VFX2812M inverter/chargers provide true sinewave power output, and intelligent battery charging. They are modularly expandable to your power needs providing a complete power conversion solution. They incorporate a DC to AC inverter, battery charger, and an AC transfer switch, which combines 30 amp pass through and neutral/ground switching. All OutBack inverter/chargers produce virtually distortion free sinewave AC power for onboard electronics like sensitive home theater equipment andmicrowaves with minimal RF interference. Industry leading surge power starts heavy loads like air conditioning. Power factor corrected battery charging gets the most out of your shore cord and generator while maximizing the life and performance of your batteries. Ultra fast AC transfer switch with neutral/ground switching seamlessly transfers shore cord current without dropping loads. Modular expandability is achieved through networked communications, allowing your inverter system to grow with your power consumption needs.

The Vented OutBack VFX2812M has the same proven technology and conformal coated circuit boards as the sealed version but offered in a vented chassis for higher power output. The fully screened “bug-proof” openings keep the power conversion components cool in very hot environments even when operated at high power for extended periods in more protected environments.

Outback VFX2812M (vented) Marine & RV Inverter Specifications:

Continuous Output Power: 2800 VA
Output Voltage: 120 VAC/60 Hz
DC Input Voltage (Nominal): 12 VDC
Peak Efficiency: 90%
AC Input Current Maximum: 30 amps AC
Continuous DC Charge Rate: 125 amps DC
Frequency Range: 54-66 Hz
DC Input Voltage Range: 10.5-17.0 VDC
Recommended DC Breaker: Outback 250 amp breaker
Warranty: 2 years (optional 5 year extended warranty)
Weight: 64 lbs

Click Here To Download The Outback Power Systems Marine & Mobile (RV) Inverter Specifications **
( ** Click to download and save on your computer. PDF format. Adobe Acrobat viewer required for viewing.)
