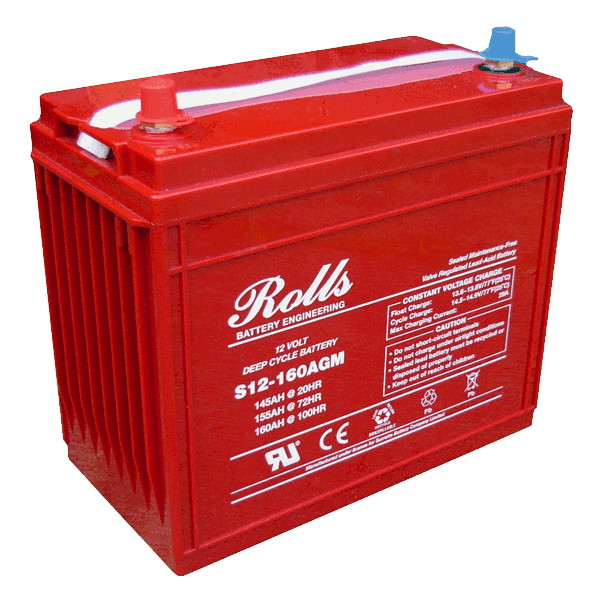

Rolls Surrette S12-160AGM (S12160AGM) AGM Battery
12 Volt Six Cell
Deep cycle batteries for Renewable Energy, Marine, RV, Inverter, Solar
Panel (Photovoltaic), and Alternative (Alternate) Energy Applications.
The Rolls Surrette S12-160AGM (S12160AGM) Deep Cycle Battery features a high cycle life
without the need for maintenance. The AGM technology (Absorbed Glass-Mat) keeps the
electrolyte (Acid) contained in the glass mats allowing the S12-160AGM (S12160AGM) to
not expel any liquids even under severe overcharge. The S12-160AGM (S12160AGM) is a non-hazardous
battery resulting in lower shipping costs and can also be shipped via air.
AGM batteries have an extremely low internal resistance giving them a very low selfdischarge
The S12-160AGM (S12160AGM) is a 12 volt battery with a capacity of 160 Amp Hrs. @ 100
Hr. rate or 145 Amp Hrs @ 20 Hr. rate. The terminals are brass auto posts with top threaded
Warranty is 5 years (First 24 months free replacement, next 36 months prorated).
For a single string of 160 Amp Hrs. @100 Hr rate, you will need 1 of the S12-160AGM
(S12160AGM) for a 12-volt system, 2 of the S12-160AGM (S12160AGM) for a 24-volt
system and 4 of the S12-160AGM (S12160AGM) for a 48-volt system. Each additional string
will multiply the Amp Hrs.
