Outback Power Systems FX2524T Inverter

Outback Logo

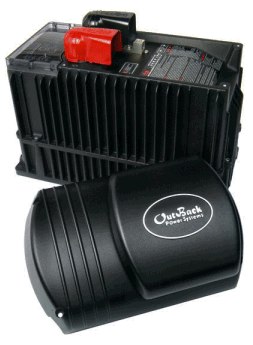

Outback Power Systems Inverter

The OutBack Power System’s FX2524T true sinewave inverter/charger is a complete power solution. It incorporates a DC to AC sinewave inverter, battery charger and AC transfer switch housed within a die-cast aluminum chassis. Intelligent multistage battery charging runs your generator less, and prolongs the life of your batteries. Built-in networked communications enables multiple units to be stacked and connected with other OutBack power electronics providing industry leading integration and near infinite application flexibility. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away. The flagship FX2524T uses a sealed chassis that can operate in the harshest environmental conditions such as high humidity and corrosive salt air. Additional FX2524T inverter/chargers can be connected at any time in parallel (120 VAC), series (120/240 VAC), or three-phase (120Y208 VAC) configurations.

Outback FX2524T (sealed) Off-Grid & Backup Inverter Specifications:

Continuous Output Power: 2500 VA
Output Voltage: 120 VAC/60 Hz
DC Input Voltage (Nominal): 24 VDC
Peak Efficiency: 92%
AC Input Current Maximum: 60 amps AC
Continuous DC Charge Rate: 55 amps DC
Frequency Range: 54-66 Hz
DC Input Voltage Range: 21.0-34.0 VDC
Recommended DC Breaker: Outback 175 amp breaker
Warranty: 2 years (optional 5 year extended warranty)
Weight: 67 lbs

Click Here To Download The Outback Power Systems Off-Grid Inverters Spec Sheet **
( ** Click to download and save on your computer. PDF format. Adobe Acrobat viewer required for viewing.)
